Dunkermotoren直流電機，Dunkermotoren交流電機，
Dunkermotoren行星齒輪箱，Dunkermotoren控制器,
Dunkermotoren百葉窗驅動器, Dunkermotren制動器,
Dunkermotoren無刷直流電機, Dunkermotoren伺服元件.

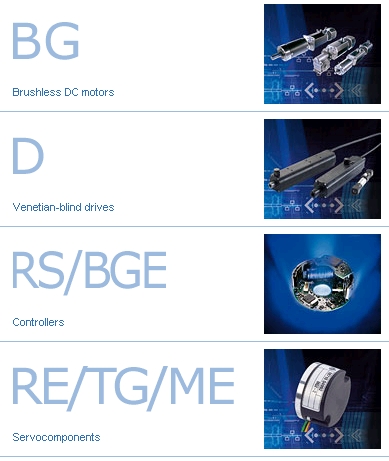

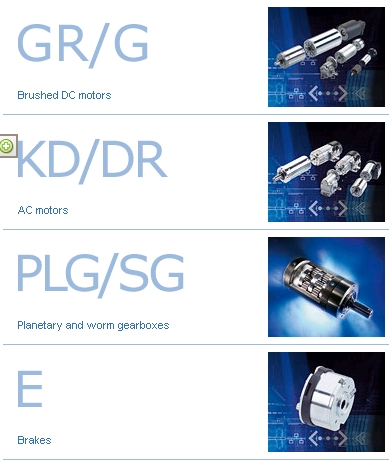

Dunkermotoren有刷直流電機 GR/G無刷直流電機 BG交流電機 KD/DR百葉窗驅動器 D行星和渦輪式齒輪 PLG/SG制動器控制器編碼器
Dunkermotoren GR/G系列永磁直流電機（換向直流電機）因?yàn)槿缦绿攸c(diǎn)而聞名于世： 使用壽命比其他制造商制造的換向電機長 低定位力矩 高效率 高動態加速度 良好的調節特性 高功率密度 免維護 設計堅固 低慣量 電機絕緣等級E 繞組絕緣等級F 電機極高的短時過載能力 表面防護 最低的干擾輻射，提供不同干擾程度的產品可供選擇 防護等級高達IP 65 由于使用全自動生產線進行制造，從而使產品具有優良的質量 直流電動機可與控制電子設備、齒輪箱、制動器和編碼器結合成一個模塊化系統以提供靈活的、適應性強的、面向市場的解決方案
ALCATEL-LUCENT Dunkermotoren BRUSHED DC MOTORS GR/G GR/G GR 22 GR 22 S G 30.2 G 30.1 G 30.1 S G 30.0 G 30.0 S VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 6, 12, 24 6, 12, 24 12, 24, 40 12, 24, 40 12, 24, 40 12, 24, 40 12, 24, 40 W Rated Power PN (W): The output power which the motor can produce continuously. 2,5 3 4 6 7 10 11 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 0,48 0,57 1 1,7 2 3 3,7 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 4600 4100 3000 3400 3100 3030 2650 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller GR/G GR 42x25 GR 42x40 GR 51x30 GR 51x58 GR 53x30 GR 53x58 GR 63x25 GR 63x55 VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 12, 24, 40 12, 24, 40 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 W Rated Power PN (W): The output power which the motor can produce continuously. 15 20 40 60 40 60 50 100 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 3,8 5,7 10 17 10 17 14 27 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 3600 3100 3600 3000 3600 3000 3300 3350 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller GR/G GR 80x40 GR 80x80 VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 12, 24, 40, 60 24, 40, 60 W Rated Power PN (W): The output power which the motor can produce continuously. 120 240 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 35 62 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 2900 3200 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller
Dunkermotoren直流電機，Dunkermotoren交流電機，Dunkermotoren齒輪箱，Dunkermotoren控制器.
