This hoist is used the special design vane type air motor.It is the most familiar air hoist with compact body, and it's easy control makes more safety in load handling work.
VLX 25LP 2.5 kN VLX 25LP-PR 2.5 kN VLX 25LP-GR 2.5 kN VLX 25LP-MR 2.5 kN VLX 50LP 4.9 kN VLX 50LP-PR 4.9 kN VLX 50LP-GR 4.9 kN VLX 50LP-MR 4.9 kN VLX 100LP 10 kN VLX 100LP-PR 10 kN VLX 100LP-GR 10 kN VLX 100LP-MR 10 kN
This hoist is a upper class of TYPE VLX, and it can be used in heavy duty condition.The controlling method, and the load handling work are the same as above. In the compact body, driven motor is used special designed vane type air motor.
VMX 100LP 10 kN VMX 100LP-PR 10 kN VMX 100LP-GR 10 kN VMX 100LP-MR 10 kN VMX 200LP 20 kN VMX 200LP-PR 20 kN VMX 200LP-GR 20 kN VMX 200LP-MR 20 kN ※ Please use with FRL combination
This hoist is the highest model of our link chain hoist.The controlling method and the load handling work are the same as VLX&VMX.Driven motor is vane type motor. LINK CHAIN HOIST (TYPE VHX) Model Capcity Drawing VHX 300LP 28 kN VHX 300LP-PR 28 kN VHX 300LP-GR 28 kN VHX 300LP-MR 28 kN VHX 500LP 48 kN VHX 500LP-PR 48 kN VHX 500LP-GR 48 kN VHX 500LP-MR 48 kN
The driver of this hoist is standard radial piston type air motor. It can be use in the worst condition as high temperature, high humidity, full of dust etc. The design policy of this hoist is full of durability and the highest reliability, We delivered and installed to Iron manufacture, Shipyard, Oil refinery, Off shore and other heavy industries. WIREROPE HOIST (TYPE R) Model Capcity Drawing R 102 10 kN R 202 20 kN R 302 30 kN R 502 50 kN R 754 75 kN R 1004 100 kN
By the high quality machining and finishing, we made compact and light-weight motors.It is the most popular model and it is used to various fields widely.However the motor speed is middle and high range, our unique system make to keep the low speed torque and high starting torque.In case of the extra low speed or the extra high torque, the optional reducer can be available.The way of motor mounting are base mount, flange mount and face mount, and it can be applied to various site requirement. VANE MOTOR（TYPE VA）（One way rotation） Model Out put （0.6Mpa） Face Flange Base Performance curve VA15 0.14kW VA30 0.27kW VA50 0.45kW VA100 0.90kW VANE MOTOR（TYPE VA） With Reducer（One way rotation） Model Out put （0.6Mpa） Face Flange Base Performance curve VA15※-※005 0.12kW VA15※-※010 0.12kW VA15※-※020 0.12kW VA15※-※030 0.12kW VA30※-※005 0.23kW VA30※-※010 0.23kW VA30※-※020 0.23kW VA30※-※030 0.23kW VA50※-※005 0.39kW VA50※-※010 0.39kW VA50※-※020 0.39kW VA50※-※030 0.39kW VA100※-※005 0.78kW VA100※-※010 0.78kW VA100※-※020 0.78kW VA100※-※030 0.78kW
By the high quality machining and finishing, we made compact and light-weight motors.It is the most popular model and it is used to various fields widely.However the motor speed is middle and high range, our unique system make to keep the low speed torque and high starting torque.In case of the extra low speed or the extra high torque, the optional reducer can be available.The way of motor mounting are base mount, flange mount and face mount, and it can be applied to various site requirement. VANE MOTOR（VF）（Two way rotation） ＞＞＞ VANE MOTOR（VF）With reducer（Two way rotation） ＞＞＞ VANE MOTOR（TYPE VF）（Two way rotation） Model Out put （0.6Mpa） Face Flange Base Performance curve VFR03 0.3kW VF05U 0.38kW VF10U 0.75kW VF20U 1.50kW VF30U 2.25kW VF50U 3.76kW VF75U 5.71kW VANE MOTOR（TYPE VF）With slowdown machine（Two way rotation） Model Out put （0.6Mpa） Face Flange Base Performance curve VF05UG1H4※ 0.38kW VF05UG1H6※ 0.38kW VF05UG1H8※ 0.38kW VF10UG1H4※ 1.03kW VF10UG1H6※ 1.03kW VF10UG1H8※ 1.03kW VF20UG2H4※ 1.94kW VF20UG2H6※ 1.94kW VF20UG2H8※ 1.94kW VF30UG2H4※ 2.41kW VF30UG2H6※ 2.41kW VF30UG2H8※ 2.41kW VF50UG3H4※ 4.93kW VF50UG3H6※ 4.93kW VF50UG3H8※ 4.93kW VF75UG3H4※ 7.89kW VF75UG3H6※ 7.89kW VF75UG3H8※ 7.89kW
This is the most popular Radial Piston Type Air Motor, and it has a SAN-EI's long term knowhows. The quality of this motor is high torque and low speed. So it may use with compact reducer and in low noise area. Generally, we recommend it to Air Hoists and Air Winches. The method of Air motor operation is direct pipe connecting. And the optional accessories can be available as Air Brake, Reduction Gear, Pneumatic Equipment etc. RADIAL PISTON MOTOR（TYPE ＤＭ） Model Out put （0.6Mpa） Face Flange Base Performance curve DM 1 0.86kW DM 3 1.70kW DM 9 3.90kW DM 220 7.15kW DM 36 12.00kW DM 45 17.60kW RADIAL PISTON MOTOR With slowdown machine Model Out put （0.6Mpa） Face Flange Base Performance curve DM1※G2H4※ 0.86kW DM1※G2H6※ 0.86kW DM1※G2H8※ 0.86kW DM3※G3H4※ 1.7kW DM3※G3H6※ 1.7kW DM3※G3H8※ 1.7kW DM9※G4H4※ 3.9kW DM9※G4H6※ 3.9kW DM9※G4H8※ 3.9kW DM220※G5H4※ 7.1kW DM220※G5H6※ 7.1kW DM220※G5H8※ 7.1kW DM36※G6H4※ 12kW DM36※G6H6※ 12kW DM36※G6H8※ 12kW DM45※G6H4※ 17.6kW DM45※G6H6※ 17.6kW DM45※G6H8※ 17.6kW
The construction of this motor is the same as gear pump. Because of no sliding parts inside, it rotates without friction heat-up. This motor is equipped on the speed governor, and the rotating speed is always fixed against the alternation of the driving load. GEAR TURBINE MOTOR （TYPE ＡＧＭ） Model Out put Handle controle Remote controle Performance curve AGM 6 5.65kW AGM 10 8.95kW AGM 15 14.14kW AGM 23 22.46kW AGM 40 37.70kW
This is the multi-purpose air winch and it is attached standard radial piston type air motor, and control valve.The handling of this winch can be easily and safety.We delivered to various fields as Civil and building construction, Shipyard, Off-shore usage and others. Model Capcity Drawing AH- 1C 2 kN W- 05 -03 5 kN W- 10 -220 10 kN W- 20 -220 20 kN W- 30 -36 30 kN W- 50 -36 50 kN
Air mixer is the best choice to mix the solvent such as the paints, the chemical liquids, the mortar etc.There is no-spark, no-flashing, no-electric shock by the result of using air motor.The mixing speed can be easily adjusted by attached speed controller. Model Capcity Drawing VF 03B -14DH 200 L VF 03B -14DS 200 L VF 03B -09SH 20 L VF 03B -09SS 20 L

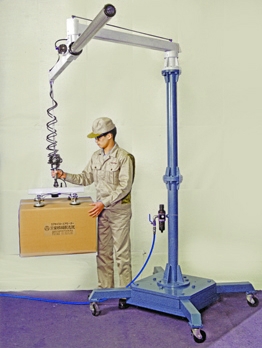

The special designed Load Sensor (PAT. PEND.) makes the one-hand handling without adjustment in operation.The Load Sensor memorize the hanging work and to keep it on no-gravity.After the memorizing, the work can be easily moved to any level or any place by touching the work itself.This unique system changes the present accurate handling work, such as the assembling parts, the attaching the work to machine tool, the installation and centering work etc. Model Type Capcity Drawing BTA 80A-S Wheel 0.80 kN BTA 80A-B Base 0.80 kN BTA 80A-C Ceiling 0.80 kN BTA 80A-W Wall 0.80 kN BTA 120A-S Wheel 1.20 kN BTA 120A-B Base 1.20 kN BTA 120A-C Ceiling 1.20 kN BTA 120A-W Wall 1.20 kN
