武田機電
| 形式 |
供給能力(T/Hr) |
出力(kW) |
トラフ寸法 |
重量 |
適用制御器 |
| 鉄鉱石 |
砂 |
石 炭 |
幅×長さ(mm) |
| RFH- 10A |
150 |
130 |
60 |
0.2 |
450× 800 |
100 |
CA- 2FR |
| RFH- 20A |
250 |
210 |
100 |
0.4 |
600×1000 |
200 |
CA- 4FR |
| RFH- 45A |
450 |
370 |
180 |
0.75 |
800×1200 |
400 |
CA- 7FR |
| RFH- 60A |
650 |
530 |
260 |
1.5 |
900×1500 |
600 |
CA- 15FR |
| RFH- 85B |
800 |
680 |
350 |
2.2 |
1100×1500 |
800 |
CA- 22FR |
| RFH- 160B |
1200 |
1100 |
600 |
3.7 |
1300×1650 |
1600 |
CA- 37FR |
| RFH- 260B |
1700 |
1500 |
900 |
5.5 |
1500×1800 |
2600 |
CA- 55FR |
| RFH- 350B |
2200 |
1800 |
1100 |
7.5 |
1800×2000 |
3400 |
CA- 75FR |
| RFH- 500B |
3000 |
2500 |
1500 |
11 |
2200×2200 |
5000 |
CA-110FR |
| RFH- 700B |
3800 |
3100 |
2000 |
15 |
2400×2400 |
7000 |
CA-150FR |
| RFH-1000B |
5000 |
4000 |
2600 |
22 |
2600×2600 |
10000 |
CA-220FR |
| RFH-1500B |
6100 |
5000 |
3200 |
22 |
2800×2800 |
13000 |
CA-220FR |
隨著粉粒體生產設備的效率化，高精密化，使用的給料機不僅需要材料的排出?供給，還需要可以滿足對后續流程的快速流量，廣范圍變化的高性能的產品。 SINFONIA TECHNOLOGY CO., LTD. 為了滿足這些粉粒體的產業界的需求，應用獨自的振動技術的振動給料機，為廣大客戶提供各種機型，受到極高的信賴。SINFONIA TECHNOLOGY CO., LTD. 從多年的振動技術和豐富的業績，振動給料機帶給各種生產線的合理化和生產率的提高。 我們多年研究振動的輸送現象，開發了利用電磁線圈的電磁給料機和利用不平衡板塊的旋轉產生振動的橡膠彈簧給料機和RV振動電機給料機的3機型。選型的時候我們根據多年給粉粒體生產線提供的業績和嚴厲的試驗數據，充分考慮材料的形狀，性質，供給量，安裝條件，運轉條件，料斗的形狀，工廠環境等條件選定最合適的振動給料機。
| 形式 |
A |
B |
C |
※D |
※E |
※F |
※G |
※H |
※J |
K |
※L |
| RFH-160B |
1300 |
1650 |
200 |
320 |
1500 |
820 |
1380 |
600 |
2140 |
930 |
1480 |
| RFH-260B |
1500 |
1800 |
250 |
435 |
1730 |
990 |
1620 |
720 |
2510 |
1180 |
1770 |
| RFH-350B |
1800 |
2000 |
300 |
330 |
2030 |
1140 |
1700 |
670 |
2710 |
1280 |
2090 |
| RFH-500B |
2200 |
2200 |
350 |
420 |
2230 |
1230 |
2100 |
710 |
3060 |
1430 |
2530 |
| RFH-700B |
2400 |
2400 |
350 |
425 |
2460 |
1340 |
2100 |
710 |
3360 |
1900 |
2730 |
| RFH-1000B |
2600 |
2600 |
400 |
420 |
2760 |
1610 |
2210 |
780 |
3690 |
2140 |
2930 |
| RFH-1500B |
2800 |
2800 |
400 |
511 |
2909 |
1595 |
2290 |
865 |
3940 |
2140 |
3130 |

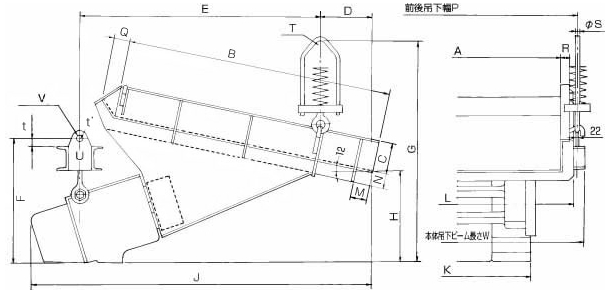

| 形式 |
M |
N |
P |
Q |
R |
吊 下 形 寸 法 |
| S |
T |
U |
V |
t |
t' |
W |
| RFH-160B |
100 |
87 |
1524 |
100 |
70 |
Φ25 |
R40 |
22 |
2-Φ40 |
50 |
R50 |
1600 |
| RFH-260B |
150 |
112 |
1804 |
125 |
75 |
Φ32 |
R50 |
25 |
2-Φ45 |
50 |
R65 |
1900 |
| RFH-350B |
100 |
112 |
2104 |
150 |
85 |
Φ38 |
R50 |
32 |
2-Φ50 |
100 |
R70 |
2200 |
| RFH-500B |
150 |
164 |
2548 |
175 |
90 |
32 |
2-Φ65 |
32 |
2-Φ65 |
100 |
R100 |
2650 |
| RFH-700B |
150 |
165 |
2748 |
175 |
90 |
38 |
2-Φ65 |
38 |
2-Φ65 |
120 |
R100 |
2786 |
| RFH-1000B |
150 |
172 |
3028 |
200 |
100 |
50 |
2-Φ75 |
50 |
2-Φ75 |
120 |
R120 |
3180 |
| RFH-1500B |
150 |
172 |
3228 |
200 |
100 |
50 |
2-Φ75 |
50 |
2-Φ75 |
120 |
R120 |
3180 |
| 形式 |
A |
B |
C |
※D |
※E |
※F |
※G |
※H |
※J |
K |
※L |
M |
| RFH-160B |
1300 |
1650 |
200 |
320 |
1500 |
820 |
1380 |
600 |
2140 |
930 |
1480 |
100 |
| RFH-260B |
1500 |
1800 |
250 |
435 |
1730 |
990 |
1620 |
720 |
2510 |
1180 |
1770 |
150 |
| RFH-350B |
1800 |
2000 |
300 |
330 |
2030 |
1140 |
1700 |
670 |
2710 |
1280 |
2090 |
100 |
| RFH-500B |
2200 |
2200 |
350 |
420 |
2230 |
1240 |
2100 |
710 |
3060 |
1430 |
2530 |
150 |
| RFH-700B |
2400 |
2400 |
350 |
425 |
2460 |
1340 |
2100 |
710 |
3360 |
1900 |
2730 |
150 |
| RFH-1000B |
2600 |
2600 |
400 |
420 |
2760 |
1610 |
2210 |
780 |
3690 |
2140 |
2930 |
150 |
| RFH-1500B |
2800 |
2800 |
400 |
511 |
2909 |
1595 |
2290 |
865 |
3940 |
2140 |
3130 |
150 |

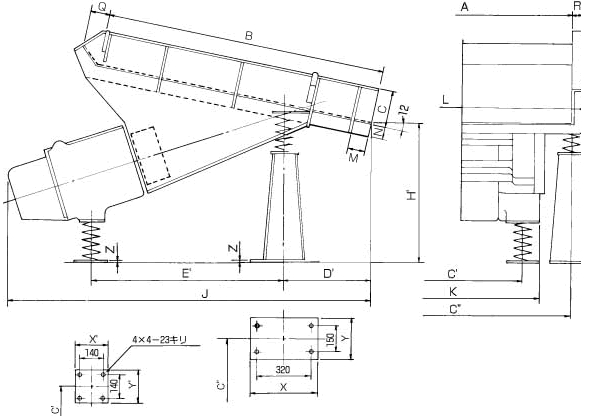

| 形式 |
N |
P |
Q |
R |
據置形寸法 |
| ※H' |
※E' |
※D' |
C' |
C" |
X |
Y |
X' |
Y' |
Z |
| RFH-160B |
87 |
1524 |
100 |
70 |
825 |
1120 |
510 |
730 |
1300 |
400 |
250 |
200 |
200 |
9 |
| RFH-260B |
112 |
1804 |
125 |
75 |
835 |
1320 |
620 |
900 |
1600 |
400 |
250 |
200 |
200 |
9 |
| RFH-350B |
112 |
2104 |
150 |
85 |
930 |
1630 |
540 |
1030 |
1900 |
400 |
250 |
210 |
210 |
9 |
| RFH-500B |
164 |
2548 |
175 |
90 |
950 |
1580 |
830 |
1080 |
2160 |
460 |
460 |
260 |
460 |
12 |
| RFH-700B |
166 |
2748 |
175 |
90 |
925 |
1870 |
850 |
1500 |
2600 |
460 |
460 |
260 |
460 |
12 |
| RFH-1000B |
172 |
3028 |
200 |
100 |
1120 |
2120 |
810 |
1500 |
2800 |
460 |
460 |
260 |
460 |
12 |
| RFH-1500B |
172 |
3228 |
200 |
100 |
1120 |
2120 |
810 |
1500 |
2800 |
460 |
460 |
260 |
460 |
12 |
形式
|
質量
(kg) |
電流容量(A) |
流量調整
裝置付 |
全電圧起動
裝置付 |
逆相制動
裝置付 |
適用負荷 |
| 200/220V |
400/440V |
| CA- 2FR |
36 |
2 |
2 |
○ |
○ |
○ |
RFH-10A |
| CA- 4FR |
36 |
3 |
2 |
○ |
○ |
○ |
RFH-20A |
| CA- 7FR |
46 |
4 |
2 |
○ |
○ |
○ |
RFH-45A |
| CA- 15FR |
55 |
7 |
4 |
○ |
○ |
○ |
RFH-60A |
| CA- 22FR |
55 |
10 |
5 |
○ |
○ |
○ |
RFH-85B |
| CA- 37FR |
98 |
15 |
8 |
○ |
○ |
○ |
RFH-160B |
| CA- 55FR |
110 |
21 |
11 |
○ |
○ |
○ |
RFH-260B |
| CA- 75FR |
145 |
28 |
14 |
○ |
○ |
○ |
RFH-350B |
| CA-110FR |
160 |
43 |
22 |
○ |
○ |
○ |
RFH-500B |
| CA-150FR |
300 |
51 |
27 |
○ |
○ |
○ |
RFH-700B |
| CA-220FR |
320 |
81 |
41 |
○ |
○ |
○ |
RFH-1000B
RFH-1500B |
Sinfonia Vibrating equipments use the force of vibration to transport and supply parts and materials. A variety of compact vibrators, vibrating conveyors and electromagnetic feeders are used as transport devices that enhance the efficiency of powder processes. Our varieties of vibrating equipments are not only used for conveying materials but also screening. We enjoy an excellent reputation as a top supplier of vibrating equipments used in a wide range of industries including foods, chemicals and garbage disposals. There are many reasons why our vibrating equipments are preferred, and one main reason is our vibrating equipments realize high efficiency conveyance with very low cost.
