Sanyo Shoji Co. , Ltd
Power supporting industry and life. Only power controlled safely and efficiently can be a beneficial force for the humans and society. The Suntes power transmissions and control devices provide this power and control for the benefit of us all. Our products improve safety, efficiency, and comfort in various applications, such as transportation in ports and quayside equipment for ships, or for human transportation by elevators and new transportation systems in towns. Suntes Products

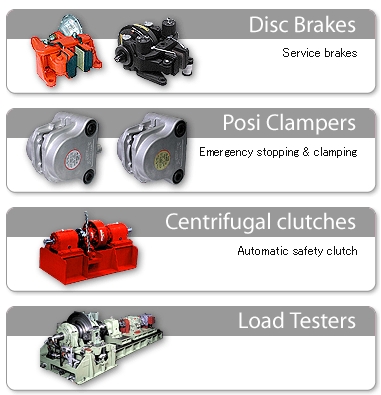

SUNTES Disc Brakes stable brake has high heat dissipation and reliability used for stopping, clamping and regulating the speed of rotating products. The design is robust with high efficiency for a wide range of applications. Small type disc brake series Palm size extra-small type, air operated (6 types), and manual type with leaver arm (4 types) are available. The products are suitable for wire winding reels, small vehicles, and roll film winding. Inspection vehicle Click to open the list (PDF file) Hydraulic Disc Brakes The combination of hydraulic pressures with an air booster, or an electric magnetic booster and a foot pedal unit provide braking pressure smoothly. These hydraulic disc brakes are suitable for wire drawing machines, traveling and rotating cranes plus vehicles and equipment with tires. Wire drawing machine Extension crane Click to open the list (PDF file) Pneumatic Disc Brakes Easy to apply braking pressure by piping factory air pressure. This Pneumatic Disc Brake has high heat resistance and is easy to install. Suitable for paper making machines, wire drawing machines and amusement equipment. Paper making machine Amusement equipment Click to open the list (PDF file) The spring operation and hydraulics of the SA Hydraulic Disc Brake provides reverse operation to release the brake.The brake operates when the control source and the hydraulic supply is cut off. Safety is improved with this type of brake. Suitable for ski lifts, winch and port facilities. Wind power generation ship Click to open the list (PDF file) The spring force and air pressure of the Disc Brake provides reverse operation to release the brake.The brake operates when the control source and air supply is cut off. Safety is improved with this type of brake. Suitable for, steel manufacturing machines and automobiles. Cold-rolling machines Monorail Click to open the list (PDF file) The spring force and electromagnetic of the Disc Brake provides reverse operation to release the brake.The brake operates when the control source is cut off. Safety is improved with this type of brake. Suitable for traveling and traversing cranes. Overhead crane Click to open the list (PDF file) This Disc brake is easily manually operated. Suitable for workbench, amusement equipment and industrial washing machines. Cassette workbench Click to open the list (PDF file) This brake utilizes centrifugal force generated by the rotating disc. The system enables a water barrier or lifeboat to descend safely automatically at a constant speed. This brake has a high reputation with its wide application range and high reliability. Water barrier gate Lifeboat being launched Click to open the list (PDF file) Hydraulic pressure devices. Combination with a disc brake system facilitates braking force. Suitable for wire drawing machines, traveling and rotating cranes, automobiles and vehicles with tires.
SUNTES Posi Clampers Hydraulic and pneumatic spring release type. Special disc brake designed for emergency stopping. This product has zero backlash and is used to control the main shaft of machines, clamping jigs and for positioning trolleys or conveyers. Zero backlash specification Large retraction gap Compact and light weight
SUNTES Centrifugal Clutches Centrifugal clutches transmit power by centrifugal and friction force on a rotating disc. Starting efficiency of the drive unit such as an engine has been reduced and improved as the shaft system is protected when it is overloaded. Combined, integrated gear clutch in a centrifugal clutch is called a centrifugal gear clutch. Engines can be operated independently without starting a pump or by switching a lever to operate engine. Basic type centrifugal clutch has improved the startup efficiency of start motors. It protects the shaft system when it is overloaded. Suitable for drain pumps, fire extinguisher pumps, compressors for refrigerated vehicles and hydraulic pumps used in construction equipment driven by engines. Hovercraft Construction equipment Click to open the list (PDF file) Combined, integrated gear clutch and lock type centrifugal clutch with its independent engine operation are highly esteemed in drain pump locations run by local governments.
SUNTES Load Testers Developed using our original water-cooling discs enables load tests at low speed, which was impossible in past. While electric and water dynamometers are generally used with high-speed low torque, the Suntes Load Tester is the low speed high torque type. The configurations of this Load Tester are, the pneumatic or Hydraulic Disc Brake grips the water-cooling disc mounted on the input shaft to provide load mechanically. A load cell detects the generated reaction force then converts it into a torque value.

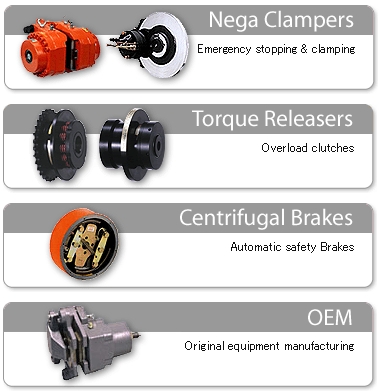

SUNTES Nega Clampers Spring force clamps the discs. Electromagnetic or hydraulics force releases the disc. The clampers are principally used for winding machines. The Nega Clamper can be used in hazardous conditions as in an emergency. Rail clampers hold the rails securely and prevent mobile cranes on tracks moving in high winds. Spring force clamps the discs and electromagnetic force release the disc. This electromagnetic clamper especially designed for clamping is also used for emergency situations. Various sizes are available for elevator stop positioning. The benefits and usage of this device are numerous. Elevator Multistory Parking Click to open the list (PDF file) Spring force clamps and hydraulic force release it. This hydraulic camper is a disc brake type and is designed for clamping.The clamper can accommodate positional clamping such as a port facility or in sever conditions as in steel manufacturing machines. Steel works ladle crane dam Click to open the list (PDF file) Two types are available; rail clamper type in which the spring force clamps both sides of the rail and hydraulics releases it, and the rail brake type that hydraulics releases the clamp pressing the wheel tread. For safety in a stormy wind, the Rail Clamper is used to clamp mechanical handling equipments such as a massive port crane on a track.
SUNTES Torque releasers If the torque is over a fixed value, transmission power is shut off. This system minimizes damage to production equipment due to sudden overloading or operation interruptions. Mechanical type This type release automatically when overload occurs in the drive shaft system. TX type - the fixed dog clutch resets continuously each rotation after releasing. The TY type - the fixed dog clutch resets it manually in free rotation after releasing. Suitable for automatic machines such as packaging, pressing, mixing, and plastic forming machines. Click to open the list (PDF file) Click to open the list (PDF file) Click to open the list (PDF file)
SUNTES Centrifugal Brakes These Brakes utilize centrifugal force produced by rotation speed. The system safely lowers water barriers and launches lifeboats automatically at a constant speed. This type has a high reputation with its wide application range and high reliability. These Brakes utilize centrifugal force produced by rotation speed. The system safely lowers water barriers and launches lifeboats automatically at a constant speed. This type has a high reputation with its wide application range and high reliability.
