韓國SAM IL三一產業株式會社是韓國著名的液位計制造商,產品有液位計,流量計,液位開關,磁性測微計等產品,產品廣泛地使用于石油化工及電子電器等行業.在韓國著名企業如LG,現代,三星,DOOSAN及日本東洋工程都有用到SAM IL的產品.主要型號有SEL-G200W,SEL-G300W,SEL-G200S,SEL-G300S,SMF-50A,SMF-65A,SMF-50AN,SMF-50AJ,SMF-50ALD,SMF-50AU

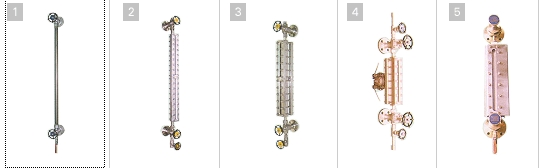

SBG-1,2,3 150(LB) SRG-1,2,3,4 150~2500(LB) STG-1,2,3,4 150~2500(LB) STG-IL 150~2500(LB) SRG-1SM 150(LB) 1. Tubular Type Level Gauge Used for observing the fluid level at low temperature & low pressure with to be of low price. 2. Reflex Type Level Gauge Used for observing the level of various liquids by using reflection of light and for high pressure, high temperature excepting steam line. 3. Transparent Type Level Gauge Used for observing the fluid level in high pressure & high temperature (Including Steam) and especially for steam line through transmission of light. 4. Illuminator Type Level Gauge Used for observing the fluid level in a dim place or at night by using an explosion-proof or Weather-proof. (Explosion-Proof : KOSHA / Exd Ⅱ B + H2 T5 & CENELEC / EExd Ⅱ B + H2 T4, IP66 ; weather-proof). 5. Flat Type Self-Closing Level Gauge For Marine Used for observing the fluid level of oil tank for ship and light weight rather than level gauge for land. [Note] 1) The material of above items available in Carbon steel, Stainless steel & Alloy steel, Titanium, PVC, Teflon etc, And others are available on request by customers. 2) Other items manufactured by SAMIL are Large Chamber(SRLG, STLG) suitable for high viscosity & high specific gravity, Non-frosting(SRNG, STNG) used for below 0∩, Jacket Type for heating & cooling(SRJG, STJG) used observing the fluid level by changing it into state of liquid after heating & cooling it through jacket as per features of fluid, Zig-Zag(SRZG,STZG) used for observing the overall fluid level by covering the invisible section (dead band). 3) The certificate of explosion-proof for llluminator type level gauge(SRG-IL, STG-IL) is FM approved Division 1, 2 and Class I : Group B,C,D and Class Ⅱ : Group E,F,G & Class Ⅲ : Type 4. 4) The certificate of U?L is available on Class I : Groups C,D Temp. Code T4A ; Division 1 Class Ⅰ: Group B Temp. Code T2A ; Division 2. 5) For models not shown in this online as available, see our detail catalogue.
|
